Wired M-BUS Systems

The M-BUS EN13757-2/3 transmission protocol is used for the remote data reading of any kind of metering devices (electricity, water, heat, gas, etc.).

An M-BUS network allows the connection of up to 250 different devices and data reading of each one of them through a single data concentrator.

The data concentrator allows remote reading or/and easy data download to a PC. The M-BUS wired modules allow direct connection to an M-BUS Master concentrator, thus eliminating the need of pulse emitting devices and M-BUS signal converting devices.

This grants savings over the quantity of equipment used, a dramatic assembly time reduction and a significant installation simplification.

M-BUS wired transmission module suitable for all water meters model GSD8-RFM

GSD8-RFM

M-BUS wired transmission module suitable for all water meters model GMDM-I, GMB-I and GMB-RP-I

GMDM-I

GMB-I

M-BUS wired transmission module suitable for all water meters model WDE-K50

WDE-K50

Pulse to M-BUS signal converter. Suitable for 4 devices with pulse output.

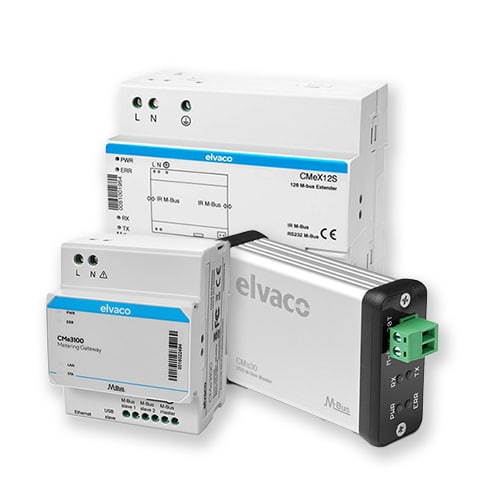

M-BUS concentrator, suitable for displaying the consumption data of all the meters connected to an M-BUS network and to acquire reading and export data using a PC.

Available in different sizes for supporting networks up to 60 and 250 M-BUS slaves. Supplied with configuration and reading software useful to set the devices connected to the network to acquire and store the consumption data into a PC, using a simple and user friendly interface.

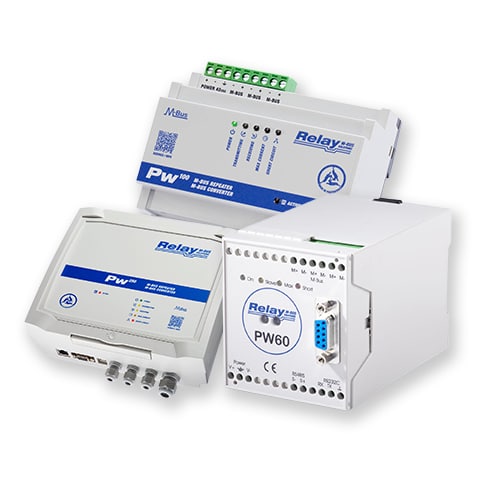

M-BUS signal repeater to increase the length of the M-BUS wired network.

Suitable for up to 250 M-BUS wired devices

Concentrator / M-BUS to MODBUS signal converter.

Suitable for 64 devices with M-BUS output.

MB-LV32 is micro-controller-based bi-directional full-duplex M-bus to RS-232C converter. It can supply power to maximum of 32 m-bus slave devices.
