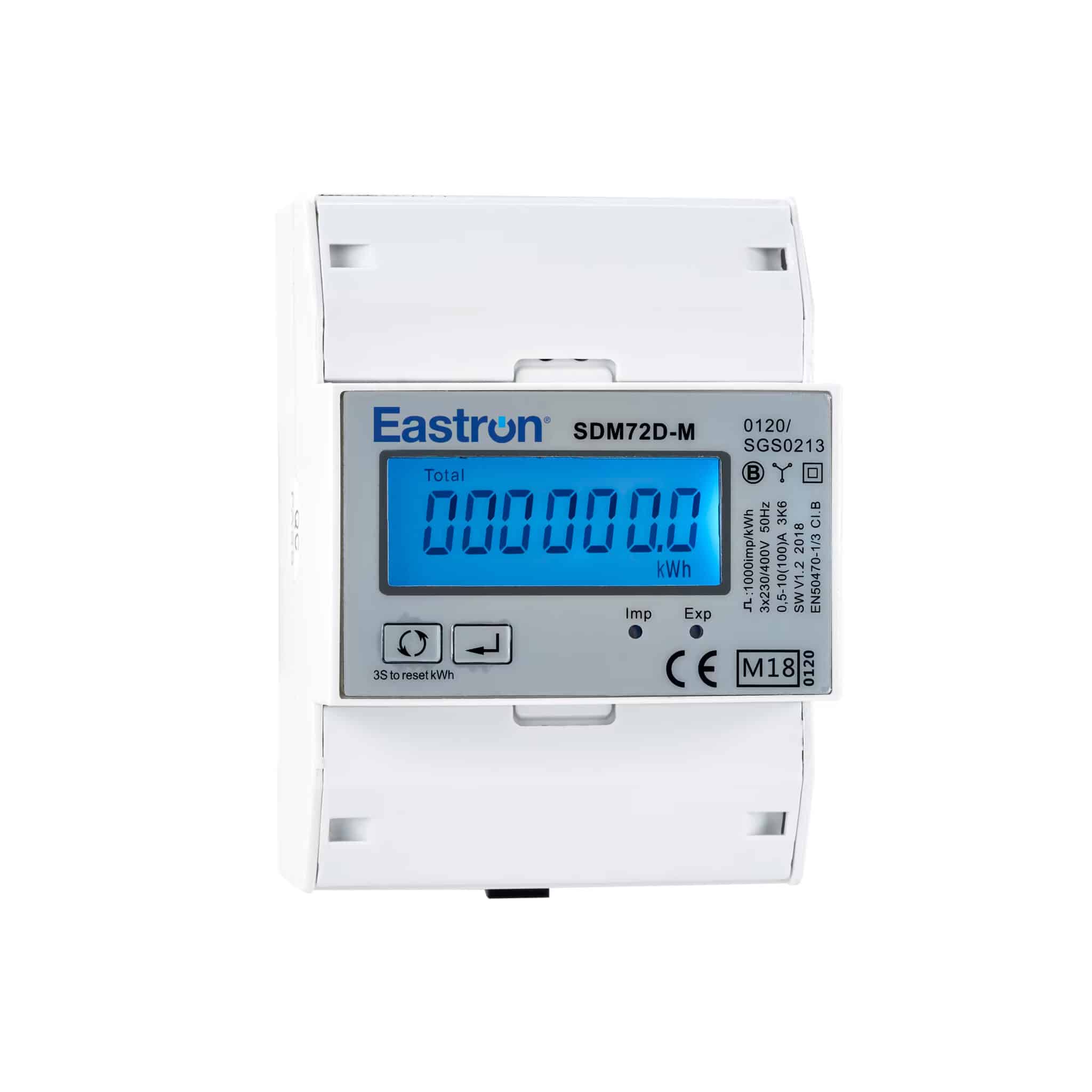

The SDM72 Series is a low-cost, three-phase, multifunction, 100A direct-fed, DIN rail-mounted electricity meter. It can measure and display the characteristics of 3p4w supplies, monitoring power (Watts), active (kWh) and reactive energy (Kvarh) imported or exported (bi-directional). Energy is measured and displayed as active (kWh) or reactive (kVARh). The SDM72 Series requires mains voltage inputs (live in and live out, neutral in and neutral out) in order to operate, it is self-supplied so it does not require an external auxiliary supply. We have a range of options from a pulsed output version for cost savings and Modbus RTU combined with a pulsed output.
Features:
Certifications & Standards:
| Model | SDM72/BR/BI |
| Nominal voltage (Un) | 3×230/400 V ac |
| Operational voltage | 80%~120% of Un |
| Insulation capabilities | |
| – AC voltage withstand | 4KV for 1 minute |
| – Impulse voltage withstand | 6KV-1.2μS |
| Basic current (Ib) | 10A |
| Maximum rated current (Imax) | 100A |
| Operational current range | 0.4% Ib-Imax |
| Overcurrent withstand | 30 Imax for 0.01s |
| Operational frequency range | 50 or 60Hz |
| Power consumption per phase | ≤ 2W/10VA |
| Pulse output | 1000 imp/kWh |
| Display | LCD |
| Max reading | 999999.9 kWh |
