MAG-C

Electromagnetic flow meter

MAG-C

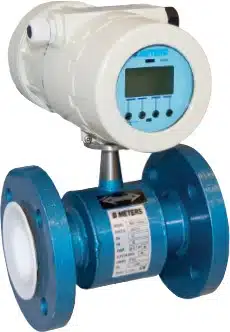

The electro-magnetic flow meter MAG-C has been engineered for measuring the flow and the volume of any liquid that is electrically conducted.

Those flow meters do not have any mechanical moving component, and therefore the liquid do not have any obstacle during its flowing, thus avoiding any potential damage caused by solids contained in the liquid.

The internal part of the measuring pipe is electrically insulated and therefore the liquid to be measured does not have any possibility to be in contact with the material by which the pipe and the flanges are made of.

This allows the possibility of measuring any type of liquid compatible with the internal cladding. The MAG-C meters enjoy a very low pressure of loss and the possibility of mounting in any position.

They are suitable for every sector of the chemical, paper, food industries and water works. Remote reading available through GSM/GPRS interface.

Electro-magnetic
Electro-magnetic
Any type of liquid
Any type of liquid
No mechanical moving components
No mechanical moving components
Low pressure of loss
Low pressure of loss
Remote reading available through GSM/GPRS interface
Remote reading available through GSM/GPRS interface
Mounting in any position
Mounting in any position

Technical features

AVAILABLE DIAMETERSDIN15 – DN2000
AVAILABLE PRESSURESPN10, PN16, PN25, PN40
AVAILABLE FLANGES UNI EN 1092, ANSI150, ANSI300, DIN2501,
BS45404, AWWA
IP PROTECTIONIP68
MAXIMUM READING ERROR±0,2%
MAXIMUM FLUID SPEED 10 m/s
ELECTRICAL CONDUCTIVITY ≥ 5 μS/cm (powered version)
≥ 20 μS/cm (battey version)
AVAILABLE LININGS PTFE
EBANITE
MAXIMUM FLUID TEMPERATURE MAG-C -40°C /+80°C
MAG-S PTFE -40°C /+130°C EBANITE -40°C/+80°C
PIPE MATERIALCarbon Steel
ELECTRODES MATERIALHASTELLOY C
n° ELECTRODES 3 (˂DN50), 4 (≥DN50)
AVAILABLE POWER SUPPLY 90 ÷ 264 VAC o 24 VDC
Interchangeable battery life 3 – 6 years
DISPLAY LCD graphic 128 x 64 pixels retrofit
OUT SIGNALS (ELECTRICAL POWERED VERSION) MODBUS RTU RS485, Hart protocol
OUT SIGNALS (BATTERY VERSION)Pulses
EXTERNAL COMMUNICATION INTERFACE IrDA for PC connection, MODBUS on RS485, GSM/GPRS
TO STANDARDS 89/336/EEC, EN61326-1:2006, 2006/95/EC, EN ISO 6817

Flow rates

m/s Velocity (m³/h)

DN0.050.5510
15 0.03180.3183.1806.360
200.0570 0.5645.64011.340
250.0883 0.8838.83517.671
320.141.4514.4828.950
400.23 2.2622.6245.240
50 0.353.5335.3470.690
650.60 9.05 90.48119.460
1001.4114.14141.37282.740
1252.2122.09220.89441.790
1503.1831.81318.09636.170
2005.6556.55565.491,130.970
2508.8488.36883.571,767.150
30012.72127.231,272.352,544.690
35017.32173.181,731.803,463.610
40022.62226.192,261.954,523.890
45028.63286.282,862.785,725.550
50035.34353.433,534.297,068.580
60050.89508.945,089.3810,178.760
70069.27692.726,927.2113,854.420
80090.48904.789,047.7918,095.570
900114.511,145.1111,451.1122,902.210
1000141.371,413.7214,137.1728,274.330
1200203.582,035.7520,357.5240,715.040
1400277.092,770.8827,708.8555,417.690
1600361.913,619.1136,191.1572,382.290
1800408.564,085.6440,856.4181,712.820
2000565.495,654.8756,548.67113,097.340

Dimensions & Weights

DNLH
15200223
20200223
25200215
32200221.5
40200224
50200232
65200240
80200246.5
100250259
125250272
150300286
200350311.5
250450338.5
300500364
350550380
400600405

Ready to Ship

Ready to Ship

Metering products and reading system modules are ready to ship

Next Day Delivery

Next Day Delivery

Order before 5pm for guaranteed next day delivery on stocked products

Free Help & Support

Free Help & Support

Free lifetime technical support on all products and systems by B METERS

Quality Guaranteed

Quality Guaranteed

We've been manufacturing precise measurement instruments for over 25 years
