IR-MB-PULSE


Wired M-Bus transmission module with two pulse inputs

The IR-MB-PULSE add-on module can be installed on water meters HYDRODIGIT-S1 (from MID22) and HYDROSONIC and on thermal energy meters HYDROCAL-M4. Allows connection to the wired M-Bus network and allows connection of up to two pulse inputs (HydroCal-M4 only) compatible with meters (water, gas, electricity, heat, units) equipped with a pulse emitter (REED or Open Collector). All information is sent over a single M-Bus address, thus allowing easy reading of all consumption. The parameters of the module can be set via the M-Bus network or, only for HYDROCAL-M4, directly on the meter via Bmetering Software or the free Android app BMetering NFC Config.

IR-MB-PULSE
M-Bus-Logo

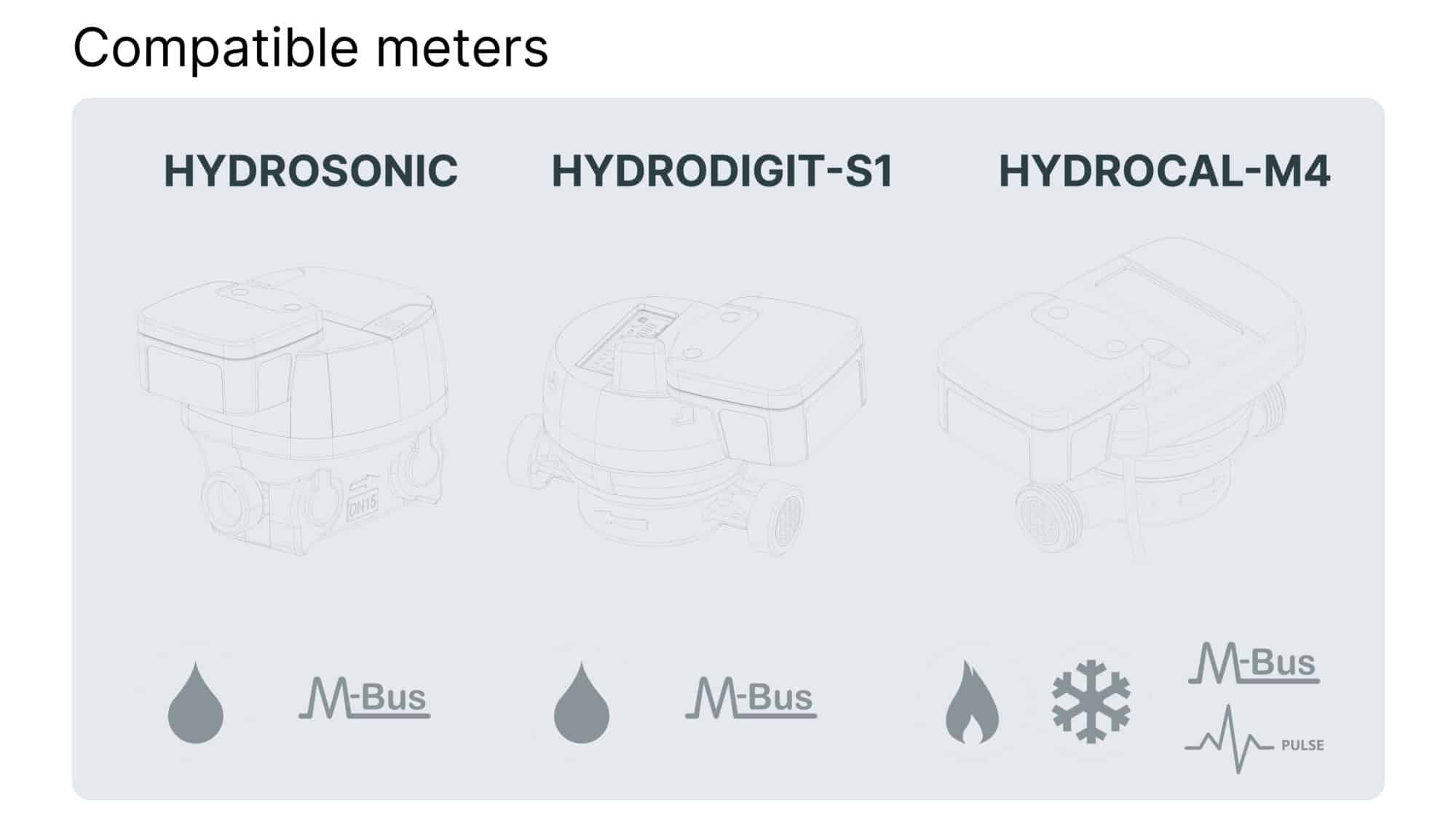

IR-MB-Pulse-Compatible-Meters

Technical Features

Dimension (WxHxD)63 x 63 x 32 mm (excluding cable)
Weight185 g
Temperature RangeFrom +1°C to +55°C
Power SupplyNon-replaceable lithium battery 3V LiMnO2
Max battery Life10 years
Protection classIP68**
Communication protocolInfrared
Transmission data protocolM-Bus standard EN13757-2/3
M-Bus communication baud rate300/2400/9600 bps (2400 bps default)
Network voltageMin. 24V – max. 42V***
Minimum M-Bus interrogation interval15 minutes
Measurement sensibilityFrom 0.001 to 10.000 x/pulse
Measurement unit availablekWh, MWh, MJ, GJ, m3, other
Pulse sampling frequency10 Hz, 25 Hz (10 Hz default)
Cable1.5 meters (5 conductors)
Compatible devicesHYDROCAL-M4 (serial number 05053000 or greater)

HYDRODIGIT-S1 from MID22 (from module
serial number 24636000)

HYDROSONIC (from module
serial number 24636000)
User interfaceRed status LED

*Battery life depends on the number of associated devices, number of M-Bus wired requests and the environmental conditions

**Maximum 24 hours of continuous submersion at a depth of 1 m.

***When connected to the M-Bus network, the internal battery has a backup function.
