The compound meter: Woltmann meter combined with a multi-jet meter connected via a switching valve

WCM

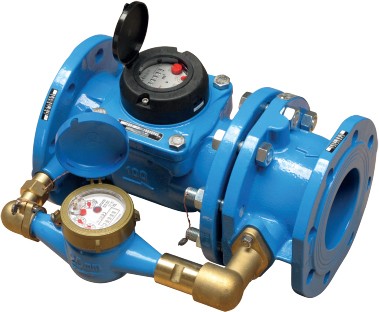

The compound meter consists of Woltmann meter combined with a multi-jet meter connected via a switching valve.

At low flow rates the valve closes the passage of water through the body of the Woltmann forcing it through the secondary channel of the multi jet meter and allowing, as a result, an accurate measuring even at low flow rates.

Woltmann: MID 2004/22/CE
Woltmann: MID 2004/22/CE
Multi-jet: MID 2004/22/CE
Multi-jet: MID 2004/22/CE
Magnetic transmission
Magnetic transmission
 Woltmann direct reading on  7 numeric rolls
Woltmann direct reading on 7 numeric rolls
Multi-jet direct reading on  5 numeric rolls
Multi-jet direct reading on 5 numeric rolls
Woltmann with removable insert
Woltmann with removable insert
BMETERS WCM

Technical Features

Nominal diameterDN mm
in
50
(2″)
80
(3″)
100
(4”)
150
(6”)
Secondary nominal diameterDN mm
in
20
(3/4″)
20
(3/4″)
20
(3/4″)
40
(1″1/2)
Minimum flow rate Q1l/h404040160
Transitional flow rate Q2l/h 646464256
Nominal flow rate Q3m³/h2563100250
Overload flow rate Q4m³/h31.2578.75125312.5
Maximum reading999,999
+99,999
999,999
+99,999
999,999
+99,999
9,999,999
+999,999
Minimum readingl 0.5
+0.05
0.5
+0.05
0.5
+0.05
5.0
+0.05
Ratio Q3/Q1630160025001600
Changeover Flowrate (increasing) Qx2 m³/h2.602.802.706.60
Changeover Flowrate (decreasing) Qx1m³/h1.302.001.605.00
Ratio Q2/Q11.61.61.61.6
Maximum admissible pressure MAPbar1.61.61.61.6

Dimensions & Weights

SizeDN50
(2″)
80
(3″)
100
(4″)
150
(6″)
Lmm270300360500
Wmm280310340445
Hmm180212222350
WeightKg17.621.130.174.6

Flange ISO 7005-2 / EN 1092-2 PN16
