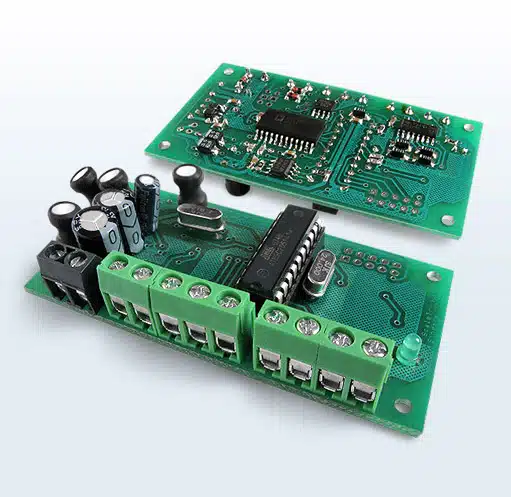

SCT-1 is a stand-alone scale on a circuit board. It is intended to be embedded in bigger and more complex devices and instruments. Mostly it is used when dosing processes take place and weight measurement is needed.
It is built of ADC, memory, a serial interface and a small microcontroller. The power supply is 8-30V DC. Scale calibration and the following weight measurement can be done only via the serial interface RS-232/RS-485, using special software developed by GINEERS.
| weight measurement, using tensometric load cells | |
| input resistance (signal) | > 1 MOhm |
| output resistance of sensor | 82 Ohm ÷ 2 kOhm |
| sensor connection type | 4/6-wire |
| sensitivity | 2.0uV |
| maximal range of measuring signal | 20mV |
| maximal cable lengths, when 4-wire connection is used | 5m; cable type LIYCY 4×0.5mm2 |
| serial interface | RS-232 standard; RS-485 option |
| measurement cycle | 0.1s ÷ 3 s |
| measurement error | 0,5е; for class III – according to EN 45501:2001 |
| power consumption | < 0.4 W |
| work temperature | from -10° C to +40° C |
| storage temperature | from -50° C to +90° C |
| dimensions (H/W/D) | 77/55/15 mm |
| mounting | 4 holes 3 mm |
| power supply | 8 ÷ 30V DC |
| own weight | 35 g |
| For further information visit www.gineers.com/en | |
