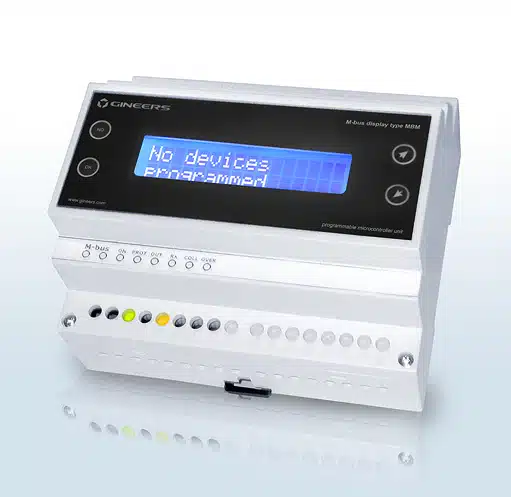

MBM-10/40 is intended to supply and read up to 40 M-Bus slave devices. It can store and display additional data for each slave, such as free text, user number, medium measured, etc. Its LCD 2×16 blue display is enough for basic user information.
User can program up to four tariffs in MBM-10 memory. MBM-10 can remember 12 history points, which are saved on every 1-th date of the month at 00:00h. All data in MBM-10 memory can read through serial RS-232 interface and Gineers software for remote reading. Additionally, MBET-2 or MBGP-1A converter can be added in the system for distant reading of MBM-10 readouts. Mounted on a standard М36 DIN-rail.
| number of slave devices | up to 40 |
| power supply | 55-250 VAC/80-350 Vdc |
| maximum consumption | ‹ 2.2 W |
| display | LCD, 2 lines, 16 symbols each |
| keyboard | 4 membrane buttons |
| storage temperature | from -50° C to +90° C |
| work temperature | from -10° C to +50° C |
| humidity | from 40 to 90% |
| dimensions (H/W/D) | 90/105/76 mm |
| interface | RS-232 serial |
| data transmission speed | 300/1.2k/2.4k bps |
| initial setup of serial interface | 2.4 kbps, even parity, 8-bit data, 1 stop |
| own weight | 410 g |
| For further information visit www.gineers.com/en |
