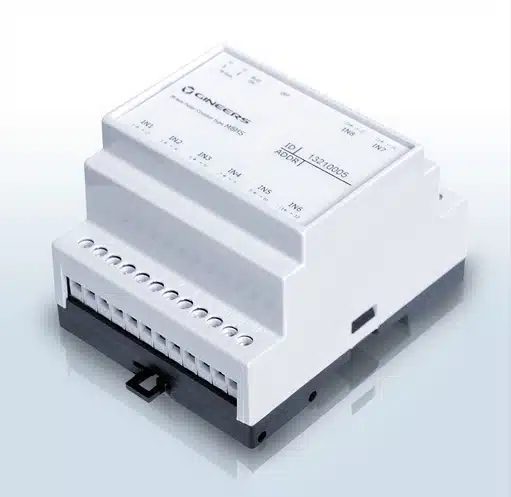

MBHS-2/4/6/8 are simplified microcontroller pulse counters with an M-Bus interface.
Their purpose is to connect in m-bus network devices, which do not have m-bus (usually water and heat meters with pulse output). MBHS-2/4/6/8 have an M-Bus interface and up to 8 pulse inputs, but no display, keyboard or tariff possibilities are provided. Backup battery is an option. Mounted on a standard М36 DIN rail.
| nominal net voltage | 36 VDC |
| allowable net voltage | 12 ÷ 42V DC |
| nominal power consumption | 2mA (1 and 1/3 standard m-bus loads) |
| number of pulse inputs | 2/4/6/8 |
| display | none |
| max input frequency | 20Hz |
| pulse switch requirements | Ron < 5k, Roff > 500k, up to 25m cable length |
| dimensions (H/W/D) | 91/71/61 mm for MBHS-6/8; 91/53/61 mm for MBHS-2/4 |
| work temperature | from 0° C to +50° C |
| For further information visit www.gineers.com/en |
