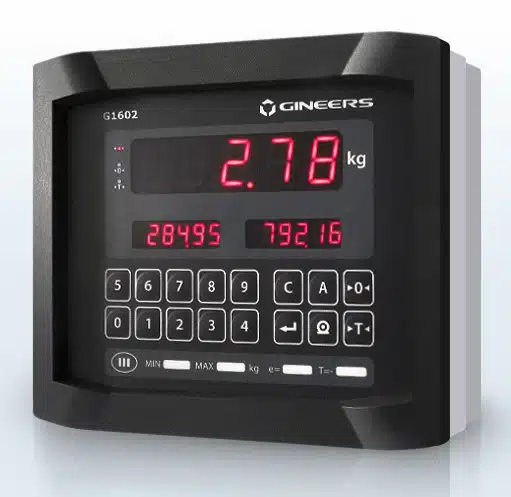

G1602 is a universal indicator based on microcontrollers. It is intended for use in all areas where weight measurement is necessary. The client can change all metrological aspects of the scale and use additional functions (counting, percent indication, blocking, PC connection, etc.).
Also special modes of work are implemented to prevent unauthorised measurement or malicious acts (like stealing). G1602 comes in an industrial box with a class of protection of IP54, but when ordered, it can be protected up to IP67. A large weight display and ergonomic keyboard allow easy work and use. Additionally, two smaller LED displays are provided, which are used in non-weight functions. Applies the requirements of EN 45501:2001 (OIML R76-1 and 2).
| weight measurement, using tensometric load cells | |
| input resistance (signal) | > 1 MOhm |
| output resistance of sensor | 82 Ohm ÷ 2 kOhm |
| sensor connection type | 4/6-wire |
| sensitivity | 0.5uV |
| maximal range of measuring signal | 30mV |
| maximal cable lengths, when 4-wire connection is used | 5m; cable type LIYCY 4×0.5mm2 |
| display | triple super bright red – 5-digit weight display, digit height 20.0mm, 2х6-digit additional displays, digit height 10mm |
| keyboard | 16-button keyboard |
| serial interface | RS-232 standard; RS-485 option |
| measurement cycle | < 1 s |
| measurement error | 0,5е; for class III – according to EN 45501:2001 |
| power consumption | < 2 W |
| work temperature | from -10° C to +40° C |
| storage temperature | from -50° C to +90° C |
| dimensions (H/W/D) | 160/175/80 mm |
| mounting | on horizontal or vertical surface |
| power supply | 220V (+10% / -15%), 50Hz; 12V DC option |
| protection class | IP54 standard, higher is an option |
| own weight | 1.1 kg |
| For further information visit www.gineers.com/en | |
