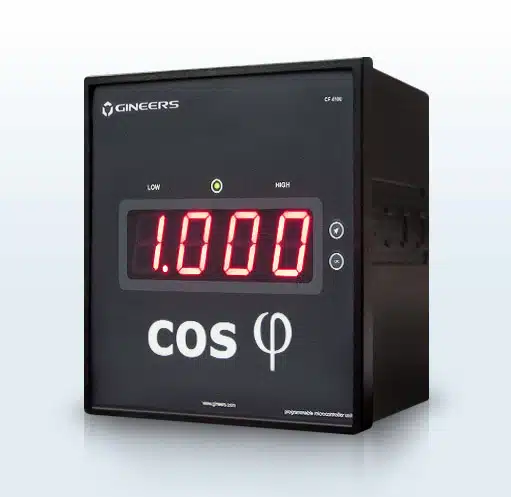

CF4100 is a digital measuring, fully programmable panel instrument from the 4100 series. CF4100 measures the signed value of the phase angle cosine between their voltage and current inputs.
CF4100s are designed to be mounted on boards in control rooms in electrical substations.
| input voltage range | 0-120 VAC/0-250 VAC |
| input current range | 0-1 AAC/0-5 AAC/0-10 AAC |
| power supply | 55-250 VAC (80-350 VDC) |
| display | super bright red, 4-digit, 94х29 mm visible, purple filter |
| measurement error | < 1.5 % rdg + 4 digit |
| measurement cycle | < 0.5 s |
| relay contacts count | up to 3 |
| power consumption | < 3 W |
| work temperature | from 0° C to 55° C |
| storage temperature | from -50° C to +90° C |
| dimensions (H/W/D) | 144/144/65 mm (w/o plugs); 144/144/75 mm (with plugs) |
| mounting hole (H/W) | 136/136 mm quad, centered |
| protection class | IP52 front, IP31 back |
| own weight | 320 g |
| For further information visit www.gineers.com/en |
